Product Details
Place of Origin: CHINA
Brand Name: SINCOOL
Certification: CE,CB, SASO
Model Number: CR
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 25 Days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 130 Units per Month
Cooling System: |
Remote Copeland Cooling System |
Room Panel: |
100mm |
Material: |
Galvanized Steel |
Door: |
Hinged Door |
Compressor: |
Copeland |
Thermostat: |
Dixell |
Cooling System: |
Remote Copeland Cooling System |
Room Panel: |
100mm |
Material: |
Galvanized Steel |
Door: |
Hinged Door |
Compressor: |
Copeland |
Thermostat: |
Dixell |

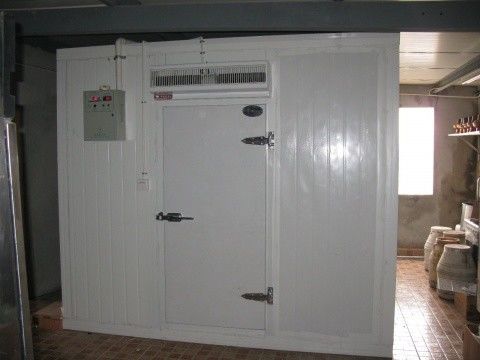

Walk in Cold Room with Remote Copeland Condensing Unit for Chicken and Meat
Key Features:
⇒ Custom sizes, OEM and ODM available
⇒ Custom room temperature from +15 ℃ to -40 ℃
⇒ Voltage/Frequency: 220V/50Hz, 220V/60Hz, 380V/50Hz, 415V/50Hz
⇒ Room Panels Thickness: 70mm, 100mm, 150mm, 200mm, depends on the room temperature
⇒ Room Panels Material: Prepainted Steel, Stainless Steel 304, 0.5mm thick
⇒ Door: Hinged Door, Sliding Door
⇒ Door Hole Size: Customized
⇒ Condensing Unit: Monoblock or Remote
⇒ Compressor: Tecumseh (monoblock), Copeland,
⇒ Optional Parts:
► Anti-slip aluminum or stainless steel floor
► Inside LED lamp
► Door Ramp
► Storage Shelf (stainless steel shelf, metal rack)
Standard Sizes Modular Walk-in Cooler & Freezer:
| Model | Dimensions (MM) | Temerature Range (℃) | Volume (M3) | Door Hole Size (MM) |
| CR2224C/F | 2120*1920*2400 | -5~+10 / 0~-40 | 7.4 | 720*1900 |
| CR2324C/F | 2120*2880*2400 | -5~+10 / 0~-40 | 11.4 | 720*1900 |
| CR2424C/F | 2120*3840*2400 | -5~+10 / 0~-40 | 15.4 | 720*1900 |
| CR3324C/F | 3080*2880*2400 | -5~+10 / 0~-40 | 17.1 | 720*1900 |
| CR3424C/F | 3080*3840*2400 | -5~+10 / 0~-40 | 23.1 | 720*1900 |
| CR4424C/F | 4040*3840*2400 | -5~+10 / 0~-40 | 30.1 | 720*1900 |
Introduction:
Cold room is a walk-in storage facility in controlled condition to keep a consistent temperature, it is widely
used to preserve the quality of stored products like fruit, vegetables, beverages, flowers, beef and
chicken meat, seafood, medicine, cheese, eggs and other fresh foods. The applications of cold rooms
include foods and beverages packaging, short and long term products cold storage as well as blast
freezing.
With years of experience, we had been enjoying the leading positions in designing and
manufacturing cold storage room with our talented experts and state of the art manufacturing facilities.
Our innovative, high quality and intelligent controlled cool room solutions have the characteristics of
integrated design, modular installation, energy saving, easy maintenance and long life span. Every our
cold room is manufactured and designed to optimize your intended uses. Our typical cool room
temperature ranges from +15°C to -40°C.
Detailed Photos:

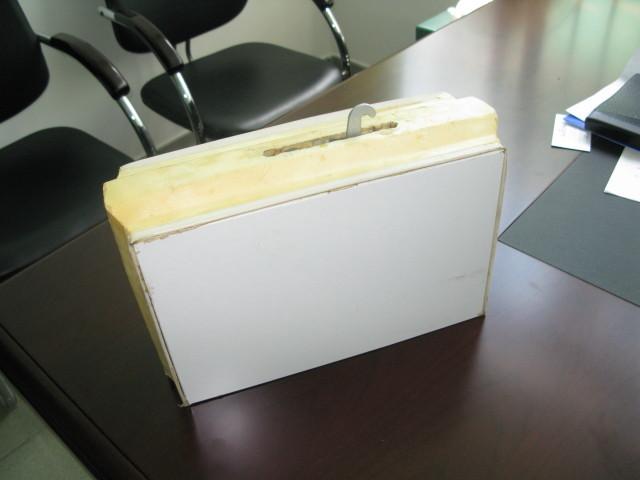

Camlock room panel
