Product Details
Place of Origin: CHINA
Brand Name: SINCOOL
Certification: CE,CB, SASO
Model Number: CR
Payment & Shipping Terms
Minimum Order Quantity: 1x20GP
Price: Negotiable
Packaging Details: Carton
Delivery Time: 25 Days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 100 Units per Month
Thickness: |
70mm, 100mm, 150mm, 200mm |
Material: |
Prepainted Steel, Stainless Steel 304 |
Door: |
Swing Door, Sliding Door |
Density: |
40-42KG/M3 |
Thickness: |
70mm, 100mm, 150mm, 200mm |
Material: |
Prepainted Steel, Stainless Steel 304 |
Door: |
Swing Door, Sliding Door |
Density: |
40-42KG/M3 |

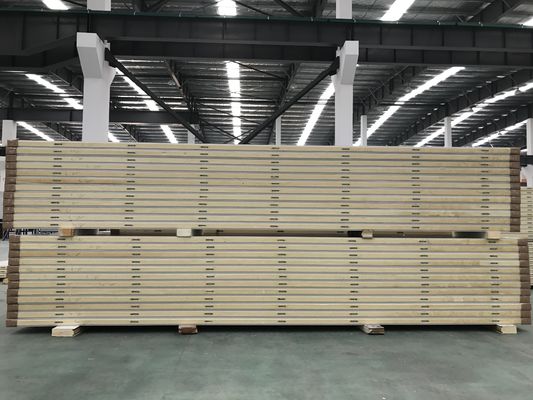

Cold Room Food Storage 75mm Thick Cam Lock PU Panel
The PU cold room panel is composed of PPGI and rigid polyurethane foam in the middle. The polyurethane cold room panel has several outstanding advantages, such as thermal insulation, waterproof, light weight and fast installation. It has been widely used as the building material of cold storages, cool rooms, clean rooms, free-dust workshops and exterior walls in cold places.
The standard panel thickness: 50mm, 75mm, 100mm, 120mm, 150mm, 175mm and 200mm
The standard color steel thickness: 0.3mm, 0.326mm, 0.35mm, 0.376mm, 0.4mm, 0.426mm, 0.5mm, 0.6mm
| Product name | Polyurethane(PU) Sandwich Board | |
| Thickness | upper layer | 0.3-0.8mm |
| core material | 75mm, 100mm, 120mm,150mm,200mm | |
| bottom layer | 0.3-0.8mm | |
| Effective Width | standard | 950mm, 970mm,1000mm,1150mm |
| other | can be customized | |
| Length | can be customized,less than 12m | |
| Density | 40-42kg/m3 | |
| Weight | up to model | |
| Color | any(generally white,blue,red,grey,) | |
| Temp tolerance | -120-90℃ | |
| Fire resistance level | A2(incombustible) | |
| Surface profile | flat,corrugated,big rib, small wave | |
| Compression bearing | ≥0.2Mpa | |
| Material | upper layer | PPGI(prepainted galvanised steel)color steel sheet |
| inner layer | PU foam(injected,not glued) | |
| bottom layer | PPGI(prepainted galvanised steel)color steel sheet | |
| Parts | Eccentric hook used for connection of panel | |
| Film covering for protecting the surface layer | ||
| Heat transfer coefficient | 0.019 W/M*K | |
| Characteristics | heat insulation energy-saving | 100mm width can keep temp at 0℃(suit for fresh keeping) |
| 150mm width can keep temp at -18℃(suit for cold storage) | ||
| 200mm width can keep temp at -38℃(suit for freezing) | ||
| Water resistance and sound proof | ||
| Weather proofing | ||
| Fire retardant level:B | ||
| High strength and bending resistance | ||
| Easy quick installation and dismantling,labour cost saving | ||
| Light weight compared to traditional stone or plaster panel | ||
| Safe and green,good appearance,without formaldehyde | ||
| Lifespan | can reach 15-20 years | |
| Usage | Can be used for wall,roof,floor and partition of cold storage, mobile house, suburban housing, suburban housing,industrial plants, warehouses, supermarkets, hospitals, stadiums, activities room,clean workshop and reconstruction residence, villa, kindergarten, commercial building, remodeling of old structures, heat insulation fire places, airport, etc. | |
