Product Details
Place of Origin: CHINA
Brand Name: SINCOOL
Certification: CE, CB, SASO, MEPS
Model Number: MAXIMA 3DF
Payment & Shipping Terms
Minimum Order Quantity: 2 Units
Price: Negotiable
Packaging Details: standard export carton+plywood pallet
Delivery Time: 25Days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 680 Units per Month
Thermostat: |
Digital Dixell |
Size/mm: |
1875(w)*740(d)*2000(h) |
Capacity: |
1260L |
Compressor: |
SECOP |
Cooling Gas: |
R290 |
Fan Motor: |
EC Fan Motor |
QTY/40HQ: |
18 UNITS |
Thermostat: |
Digital Dixell |
Size/mm: |
1875(w)*740(d)*2000(h) |
Capacity: |
1260L |
Compressor: |
SECOP |
Cooling Gas: |
R290 |
Fan Motor: |
EC Fan Motor |
QTY/40HQ: |
18 UNITS |

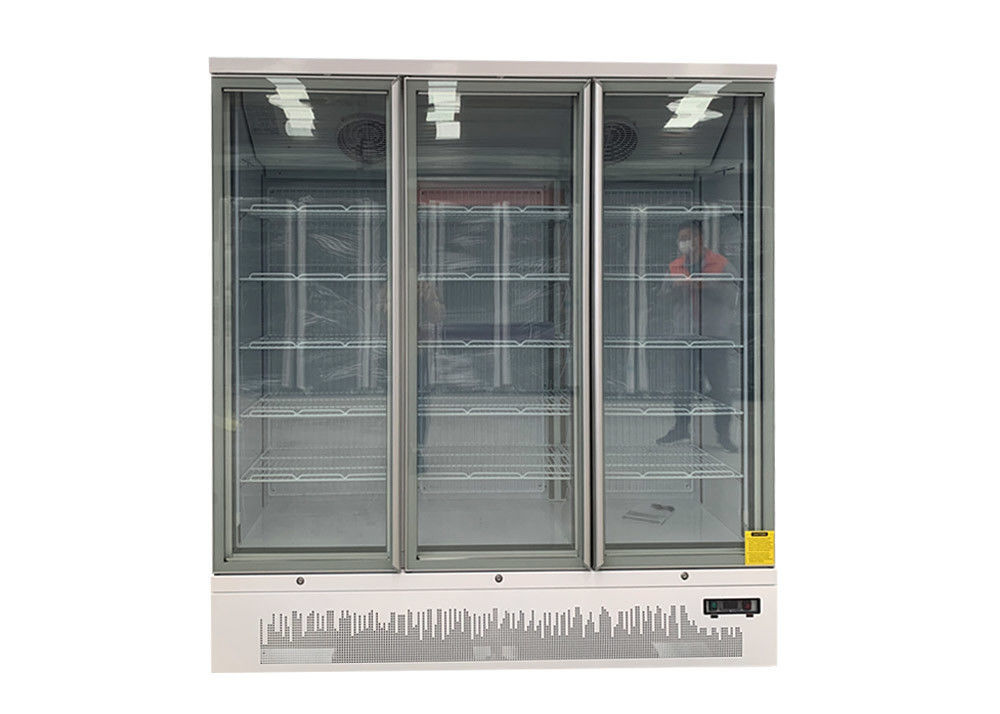

Our MAXIMA provides two types of glass door refrigerated display cabinets: the glass door freezer and the glass door chiller. The chiller can maintain inside temperatures between 0℃ to 7℃, and works for preserving and displaying all kinds of milk products and drinks. The freezer model is designed with a temperature setting ranging from -16℃ to -22℃, and is applicable for ice cream and frozen food.
⇒ Interior vertical LED lighting for brilliant illumination
⇒ Fan cooling system with Dixell digital temperature controller
⇒ Ultra low display temperature: 0~ +6 Celsius Degrees
⇒ Triple glazed swing glass door, providing superior visibility to the products
⇒ Self-closing swing door with removable and easy cleaning door gaskets
⇒ Auto defrosting design, and defrosting water auto evaporated by hot gas
⇒ 15PCS PVC coated adjustable steel wire shelves with price tags
⇒ 40mm ultra thick body insulation
⇒ Bottom mounted compressor provides more efficient operation and easy access for maintenance
⇒ White or Black Body Color, and stainless steel cabinet bottom is optional
⇒ hidden casters
⇒ Aluminium door frame & handle
⇒ EC fan motor
⇒Energy Saving
Specifications:
| MODEL | MAXIA 3DF |
| Compressor | Plug in SECOP |
| TEMPERATURE RANGE | -16~-22°C |
| AMBIENT TEMPERATURE | 32°C |
| VOLTAGE | 220V - 240V |
| FREQUENCY | 50Hz, 60Hz |
| REFRIGERANT | R290/R404a |
| PRODUCT DIMENSION (MM) | 1875(w) x740(d) x 2000(h) |
| PACKAGE DIMENSION (MM) | 1935(w) x790x 2060(h) |
| Input power | 1588W |
| G.W. | 275KGS |
| N.W. | 260KGS |
| LOADING QTY / 40HQ | 18 UNITS |
MAXIMA Series:
| Model | Temp. | Size (mm) | Refrigerant | Compressor | Display Volum |
Qty /40HQ |
| MAXIMA 1DR | 0~+6°C | 625*730*2000 | R290 | Secop | 360L | 51PCS |
| MAXIMA 2DR | 0~+6°C | 1250*730*2000 | R290 | Secop | 810L | 27PCS |
| MAXIMA 3DR | 0~+6°C | 1875*730*2000 | R290 | Secop | 1260L | 18PCS |
| MAXIMA 4DR | 0~+6°C | 2500*730*2000 | R290 | Secop | 1700 | 12PCS |
| MAXIMA 1DF | -16~-22°C | 625*730*2000 | R290 | Secop | 360L | 51PCS |
| MAXIMA 2DF | -16~-22°C | 1250*730*2000 | R290 | Secop | 810L | 27PCS |
| MAXIMA 3DF | -16~-22°C | 1875*730*2000 | R290 | Secop | 1260L | 18PCS |
Photos:
Inside back mesh protection:
DIXELL Thermostat:
Plug in bottom refrigeration system:
Sockets available:
Packing with export carton + plywood pallet:
