Product Details
Place of Origin: CHINA
Brand Name: SINCOOL
Certification: CE,CB, SASO
Model Number: CR
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 25 Days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 90 Units per Month
Cooling System: |
Remote |
Room Panel: |
150mm Thick |
Material: |
Galvanized Steel |
Door: |
Sliding Door |
Thermostat: |
Dixell |
Refrigerant: |
R404a |
Cooling System: |
Remote |
Room Panel: |
150mm Thick |
Material: |
Galvanized Steel |
Door: |
Sliding Door |
Thermostat: |
Dixell |
Refrigerant: |
R404a |
Chicken, Meat and Seafood Freezer Storage Room with Remote Cooling System
Key Features:
⇒ Customized design and installation
⇒ Customized room temperature from -5 ℃ to -60 ℃
⇒ Voltage/Frequency: 220V/50Hz, 220V/60Hz, 380V/50Hz, 415V/50Hz
⇒ Room Panels Thickness: 150mm, 200mm for room temperature below -20 ℃
⇒ Room Panels Material: Prepainted Steel, Stainless Steel 304, 0.5mm thick
⇒ Door: Sliding Door
⇒ Door Hole Size: Customized
⇒ Remote Condensing Unit, with air cooling or water cooled system
⇒ High-quality Semi-hermetic Compressor
Specifications:
| Cold Room Size | Custom |
| Room Temperature | +15 ℃ to -60 ℃ |
| Cooling System | Monoblock (simple installation), Remote |
| Compressor Brand | Tecumseh (Monoblock), , Copeland |
| REFRIGERANT | R404a |
| Voltage/Frequency | 220V/50Hz 60Hz/1PH, 380V/50Hz/3PH, 415V/50Hz/3PH |
| Thickness of Room Panel | 70mm, 100mm, 150mm, 200mm |
| Material of Panel Surface | Prepainted Steel, Stainless Steel 304 |
| Thickness of Panel Surface Material | 0.5mm |
| Cold Room Door | Hinged, Sliding |
| Door Hole Size | 720*2000mm standard for Hinged, Sliding Door Custom |
| Insulation Agent | PU |
| Room Panel Connection Type | Cam Lock |
Detailed Photos:

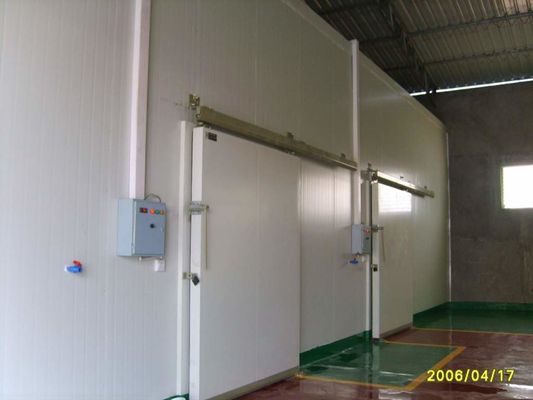

Sliding Door
Water Cooled Compressor Unit
Introductions:
Freezer room is a kind of cold room with lower storage temperature from -60°C to -10°C, it is equipped
with more thicker doors, PU panels and more powerful condensing units than cool room. Freezer room
addresses cold storage concerns of storing material reliably at consistently low temperature and fast
cooling speed, so it can keep such stored products like sea food, meat or ice scream in fresh. The
microorganism that affects the quality of food will be refrained or killed in the extremely cold environment
inside freezer rooms with temperature less than -18°C. The blast freezer can be quick freezing of stored
products from +70°C to -18°C in less than 4 hours to keep the food in fresh conditions. Freezer rooms
are widely used in food industry like restaurants, catering unit, bakeries and ice-cream parlors, etc. Our
innovative, high quality freezer rooms have the significant advantages of versatility, adaptability, energy
efficiency, easy to use. All our blast freezers can be customized to satisfy your cold storage requirements
with any sizes.
