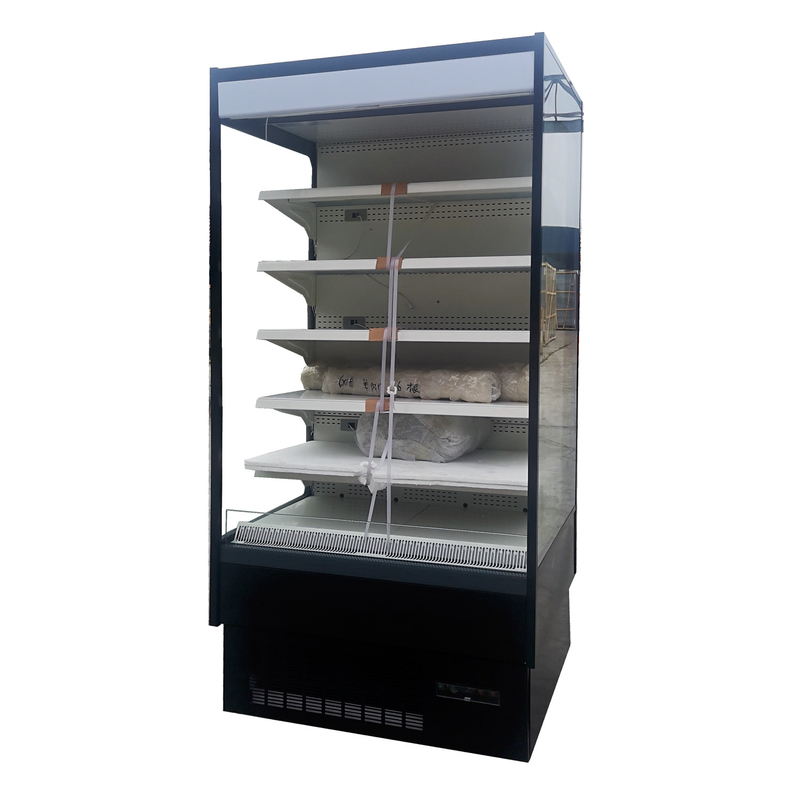

Supermarket Plug In Multideck Open Chiller For Drinks / Beverages

Basic Properties
Place of Origin: CHINA
Brand Name: SINCOOL
Certification: CE, RoHS, CB, SASO
Model Number: 17 SMART 90
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiation
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 UNITS/MONTH
Product Summary
Plug-in Multideck Open Display Chiller for Supermarket with High-quality Night Blinds for Drinks/Beverages Main Features: ⇒ R404a CFC-Free Refrigerant, which is environmentally friendly ⇒ Self-contained Embraco compressor, plug in for use ⇒ The condensing unit can be easily removed out from the ...

Product Details

Highlight:

Multideck Display Fridge CFC Free

,

Multideck Open Chiller R404a

,

5 Layers Multideck Open Chiller

Cooling System: Fan Cooling
Refrigerant: R404a
Compressor: Embraco
Expansion Valve: Danfoss
Fan Motor: EBM Fan Motors For Evaporator & Condenser
Thermostat: Dixell Digital Thermostat
Shelf: 5 Layers Adjustable Shelving
Shelf Lighting: LED Lights
Voltage: 220V/50Hz/1PH
Temperature Range: +2~+8 Celsius
Defrosting: Auto Off-Cycle Defrosting
Dimension: 900*750*2000mm
Color: Custom
Product Description

Plug-in Multideck Open Display Chiller for Supermarket with High-quality Night Blinds for Drinks/Beverages


Main Features:


R404a CFC-Free Refrigerant, which is environmentally friendly

⇒ Self-contained Embraco compressor, plug in for use

⇒ The condensing unit can be easily removed out from the front base of the cooler, which means that it is convenient to be repaired

Fan cooling, bringing no frost to the cooler and making it cool down quickly

⇒ Thickened pure copper tube condenser with longer service life

⇒ Danfoss expansion valve(R404a, R448a, R449a), precisely controlling the flow of refrigerant and saving energy

⇒ High-efficiency over-sized copper pipe aluminum fin type evaporator, quickly decreasing the temperature in the cooler

⇒ Higher evaporation temperature

⇒ Based mounted evaporator, providing deeper display shelf

⇒ EBM fan motors for evaporator & condenser with high speed and low energy consumption

⇒ Dixell digital temperature controller, precisely controlling the temperature to keep the products fresh and save energy

⇒ High-quality night curtains for non-business time to reduce the loss of the cold air, keep insects out of the cooler and save energy

⇒ 5-tier adjustable shelving with transparent plexiglass shelf stoppers & price tags, having heavy duty, providing large display areas and clearly showing price tags

⇒ Bright LED lights under each shelf and top consuming low energy & transparent glass endpanels, bringing a better display effect to the products

⇒ High-density PU insulation for the body

⇒ Tilting back post, providing larger display surface

⇒ Stainless steel inner cabinet base, which is durable and can be easily cleaned

Top canopy with LED lights

⇒ Low front design, bringing more display areas for the products to improve the sales amount

⇒ Castors and adjustable base brackets

⇒ Auto evaporation water tray with heating tube, keeping the cooler free of drainage problems

⇒ Automatic off-cycle defrosting

⇒ Custom Colors




Specifications:

MODEL I7 SMART 90
REFRIGERANT R404a
CONDENSING UNIT TYPE PLUG-IN
SHELF QUANTITY 5 LAYERS
VOLTAGE 220V
FREQUENCY 50Hz
TEMPERATURE RANGE +2°C to +8°C
AMBIENT TEMPERATURE 25°C
DISPLAY VOLUME 500L
PRODUCT DIMENSION (MM) 900(w) x 750(d) x 2000(h)
PACKAGE DIMENSION (MM) 1000(w) x 850(d) x 2100(h)
LOADING QTY / 40HQ 33PCS




I7 SMART Series:

Model Dimensions (MM) Display Volume (L) Temperature Range (ºC) Refrigeration Type Loading Qty/40HQ
I7 SMART 90 900*750*2000 500 +2~+8 Ventilated, Plug-in 33PCS
I7 SMART 125 1250*750*2000 750 +2~+8 Ventilated, Plug-in 25PCS
I7 SMART 187 1875*750*2000 1100 +2~+8 Ventilated, Plug-in 18PCS
I7 SMART 250 2500*750*2000 1500 +2~+8 Ventilated, Plug-in 12PCS
I7 SMART END 30*750*2000 End Walls, Options: Transparent Glass, Mirror, Solid
